Traxbean Ankle Tracker Passed the EMC Test – 9

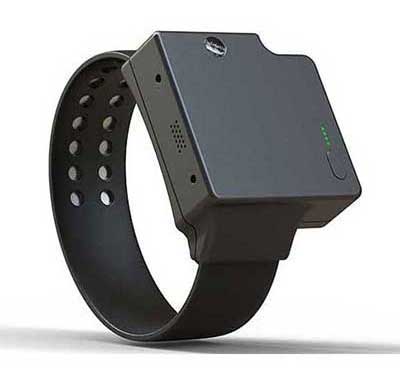

Ankle Tracker

Ankle tracker beacon is an excellent product we can enable the indoor tracking in the law enforcement solutions. To get more information please click the link Contact Us

ankle tracker,prisoner tracker,smart watch,gps tracker,Software Architecture

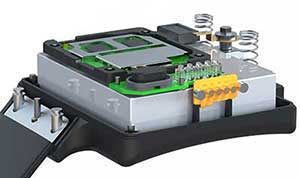

Ankle Tracker Design

We design a tamper proof ankle tracker from PCBA, DFM(Design for manufacturability) key point is safe, Electromagnetic Compatibility is one of the requirements.

ankle tracker,prisoner tracker,smart watch,gps tracker,Software Architecture

Social Media

Fast Transients Common Mode

Environmental conditions:

Temperature:15-35 ℃, Humidity:45-75 %RH



Reference documents:

IEC61000-4-4:2004 Electromagnetic compatibility(EMC)-Part 4-4:Testing and measurement techniques-electrical fast transient/burst immunity test.

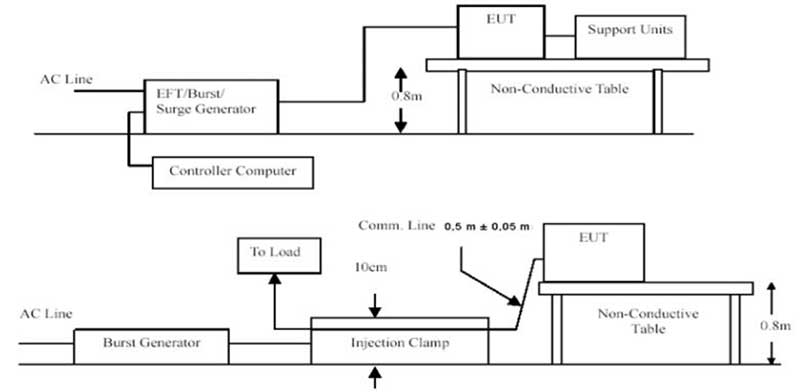

Test arrangement:



ankle tracker,prisoner tracker,smart watch,gps tracker,EMC



Sample state:

Sample is in good condition before test

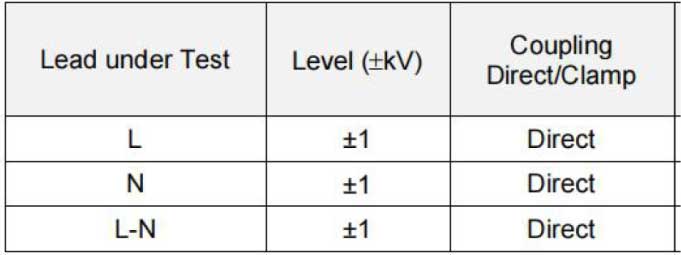

Test conditions:

The test sample is in normal state

ankle tracker,prisoner tracker,smart watch,gps tracker,EMC



General performance criteria:

Performance criteria A for immunity tests with phenomena of a continuous nature;

Performance criteria B for immunity tests with phenomena of a transient nature;

Performance criteria C for immunity tests with power interruptions exceeding a certain time.



Test acceptance requirements:

Criteria A.



Test Result:

Criteria A.



Test conclusion:

Passed

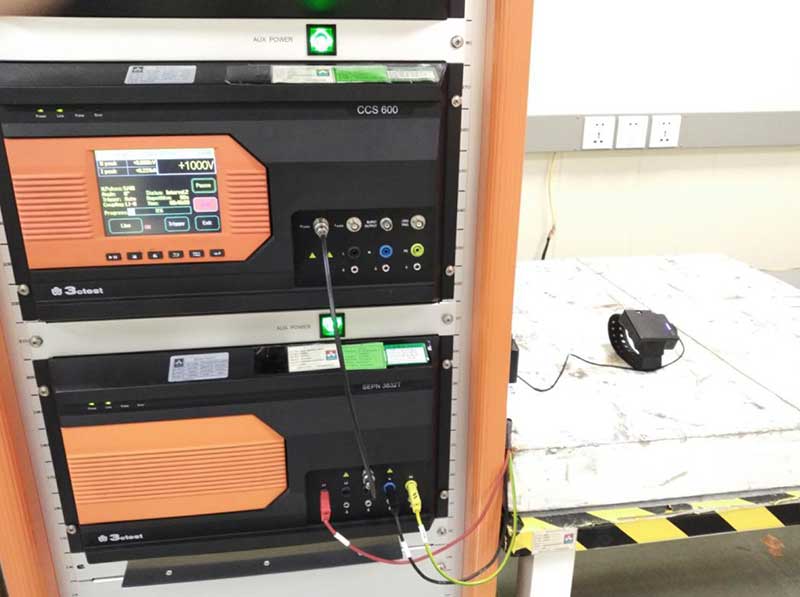

Test Photo

ankle tracker,prisoner tracker,smart watch,gps tracker,EMC

The ankle tracker is used for prisoner/offender/criminal tracking in the community correction program.





More test result and process record are coming.
